New 2026 Honda FOURTRAX 4X4 EPS

← Go Back
MSRP: $9,049
Quick Quote
  • Stock #: H00463
  • VIN: 1HFTE4467TJ200463
  • Engine: 518cc longitudinally mounted liquid-cooled single-cylinder four-stroke
  • Exterior Color: BLACK FORREST GREEN
  • Drive: Selectable 4X2 / 4X4
Get Pre-Approved
Trade-In Appraisal
Make an Offer
Check Availability
Request More Info
Schedule a Test Ride
X
Dealer Comments:

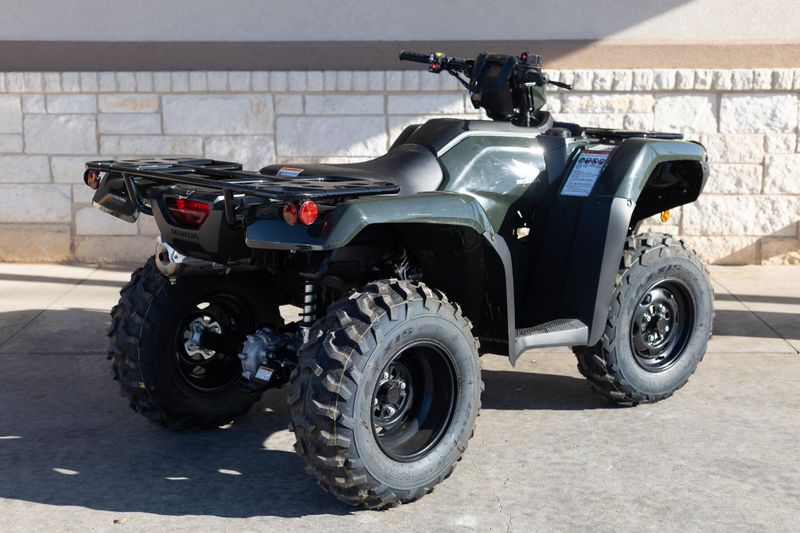

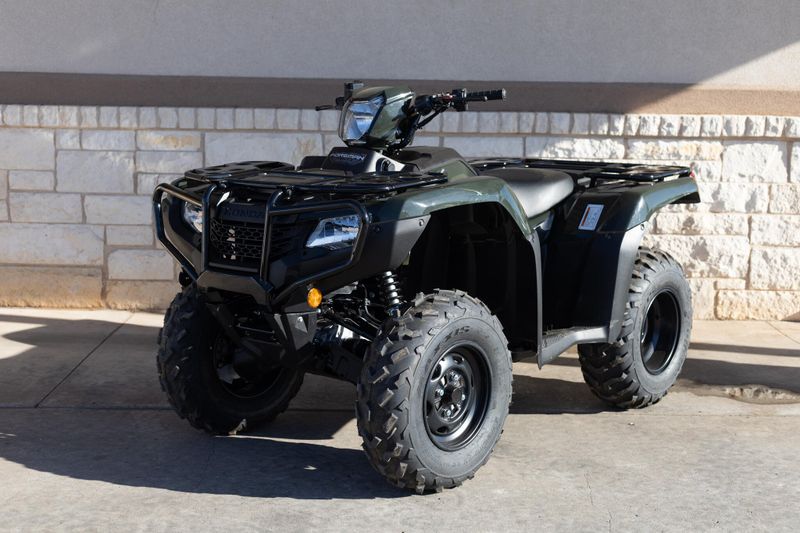

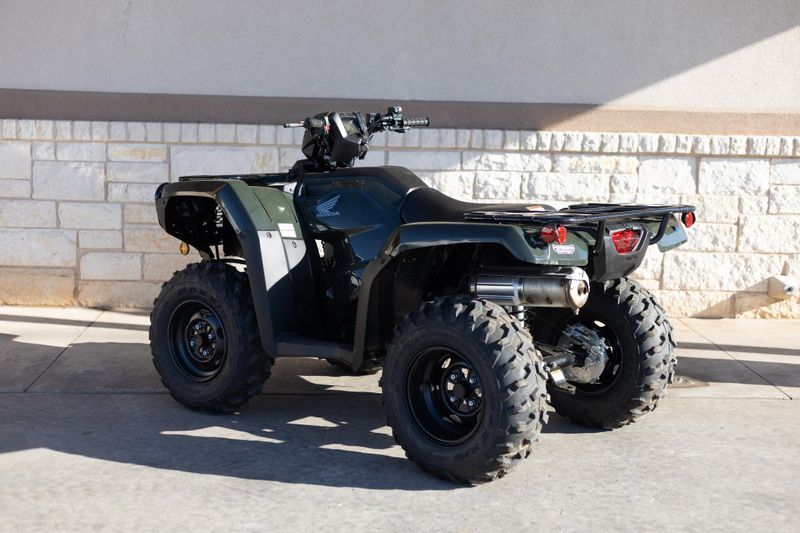

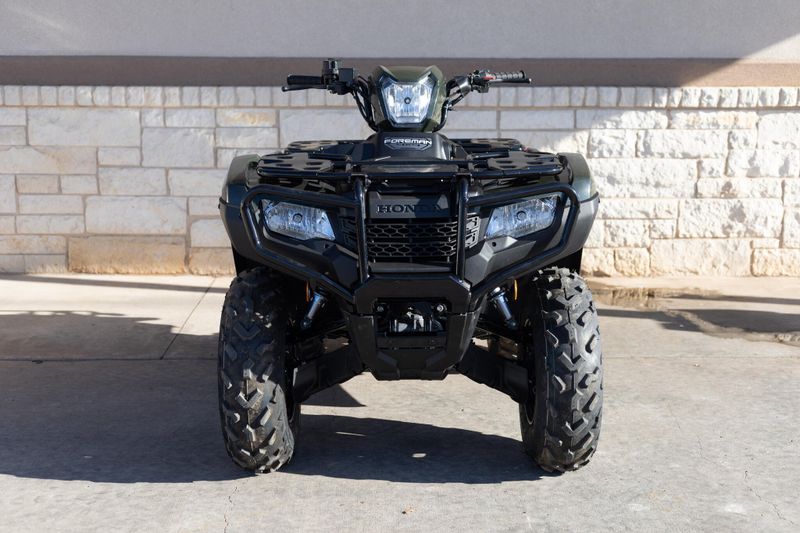

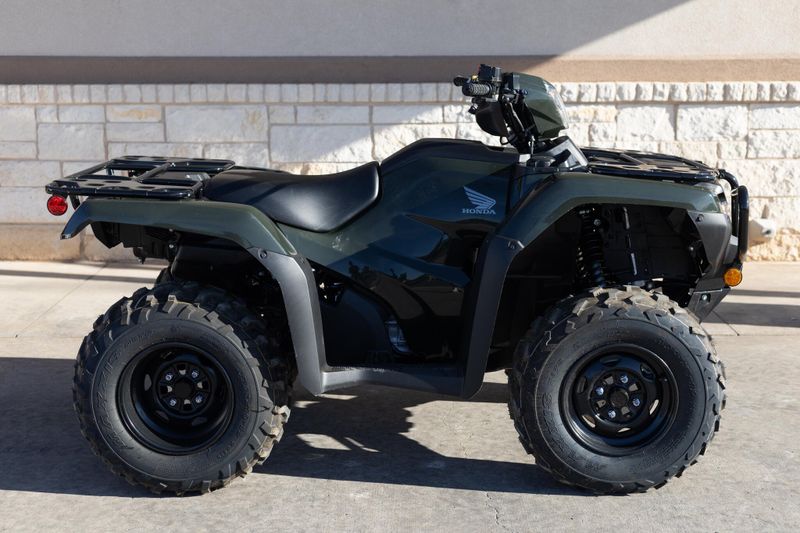

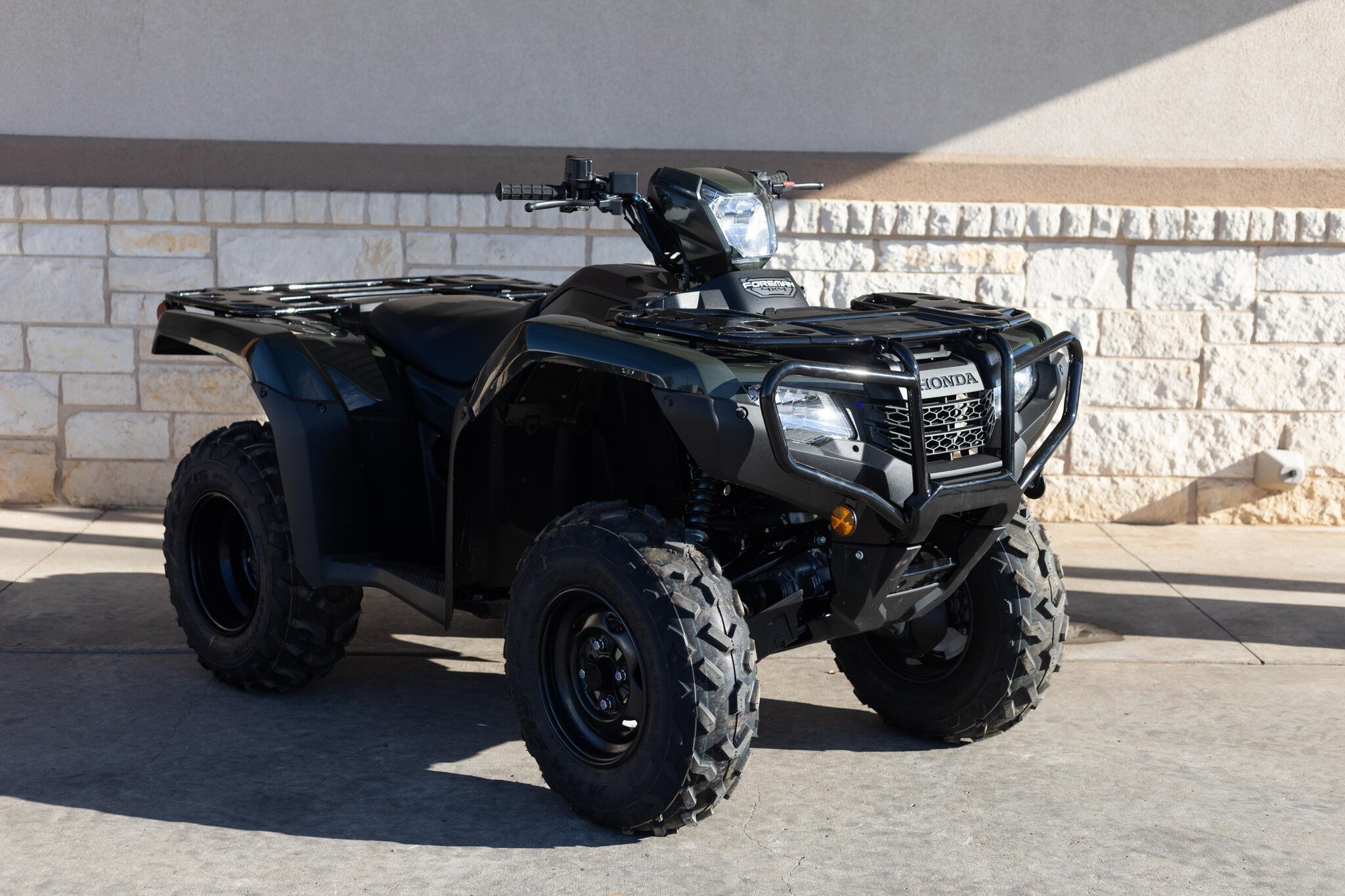

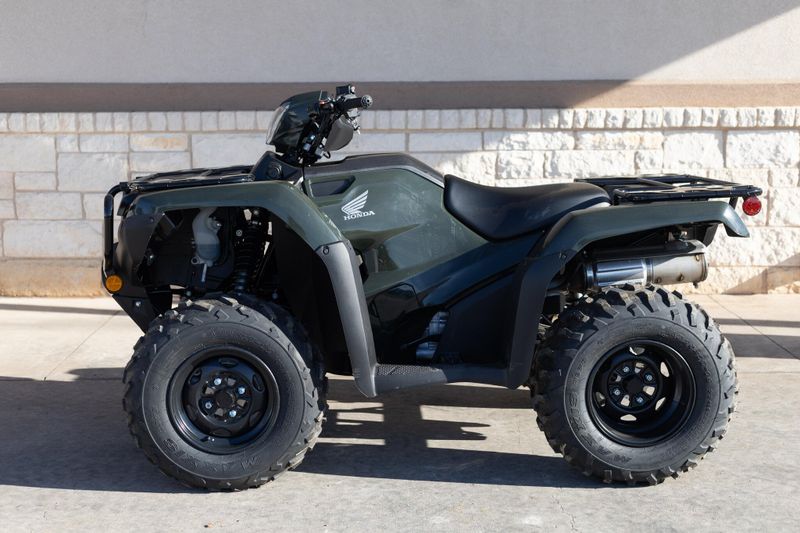

2026 Honda FourTrax Foreman 4x4 EPS – Black Forest Green

The 2026 Foreman 4x4 EPS blends reliable power with rider-focused technology, now available in a rugged Black Forest Green finish. Designed for tougher trails, tougher jobs, and better performance, it’s a versatile workhorse for any off-road task.


Core Features

  • 518 cc liquid-cooled single-cylinder engine, delivering smooth, consistent torque thanks to PGM‑FI and a compact semi-dry-sump designHonda Powersports.

  • Five-speed manual transmission with reverse, coupled with TraxLok® selectable 2WD/4WD and locking front differential for unmatched tractionHonda Powersports.

  • Electric Power Steering (EPS) for reduced fatigue and improved control.


Performance & Handling

  • Independent double-wishbone front suspension and swingarm rear suspension (each offering 7.3" of travel) deliver smooth, confidence-inspiring handlingHonda PowersportsATV.com.

  • Strong braking system featuring dual 190 mm front hydraulic discs and a rear 160 mm sealed drum ensures reliable stopping powerHonda Powersports.


Dimensions & Utility

SpecDetail
Ground Clearance7.5 inches
Curb WeightApprox. 648 lb
Fuel Capacity3.9 gal total (with 1.3 gal reserve)
Towing Capacity848 lb

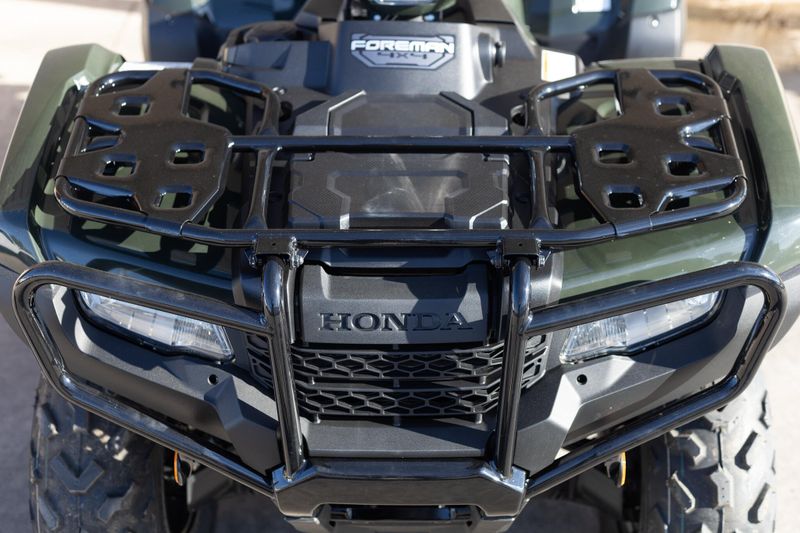

Front Rack Capacity88 lb

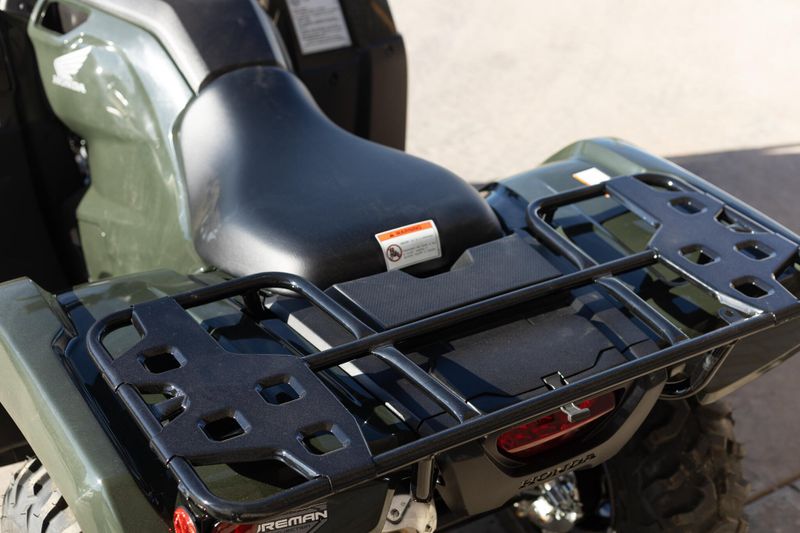

Rear Rack Capacity176 lb

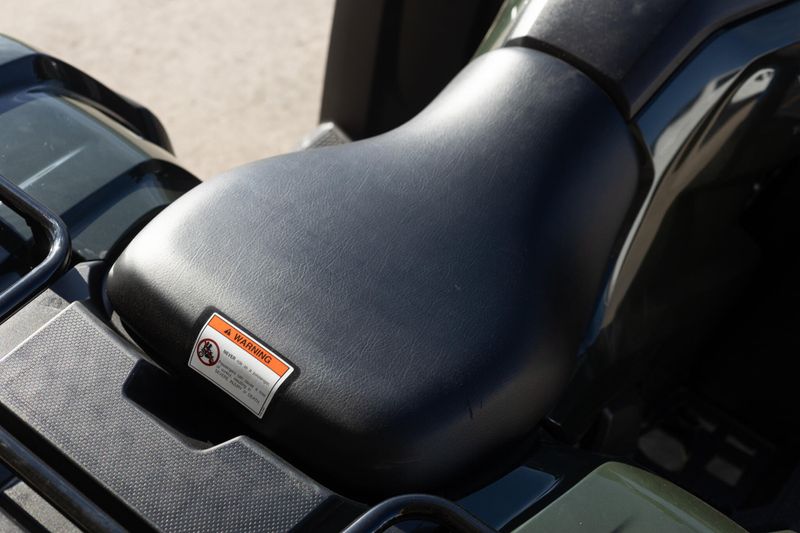

Seat Height34.5 inches
Colors AvailableBlack Forest Green, Hero Red, Phantom Camo

Tackle every job. Conquer every trail.

Built for hard work and ready for adventure, the FourTrax Foreman 4x4 delivers rugged performance with its powerful 518cc engine and long-travel suspension. Whether handling tough jobs or exploring epic trails, this ATV is your go-to machine for reliability, durability, and all-day capability.



FEATURES
    Engine
    • Engine Type: 518cc longitudinally mounted liquid-cooled single-cylinder four-stroke
    • Bore And Stroke: 96.0mm x 71.5mm
    • Compression Ratio: 9.5:1
    • Valve Train: OHV; two valves per cylinder
    • Induction: Programmed Fuel Injection (PGM-FI); 36mm throttle body
    • Starter: Electric with optional auxiliary recoil
    Drive Train
    • Clutch: Automatic
    • Transmission: Five-speed manual with reverse
    • Driveline: Direct front and rear driveshafts with TraxLok® and front differential lock
    Chassis Suspension Brakes
    • Front Suspension: Independent double-wishbone; 7.3-inch travel
    • Rear Suspension: Swingarm with single shock; 7.3-inch travel
    • Front Brakes: Dual 190mm discs
    • Rear Brake: 160mm sealed mechanical drum
    • Front Tires: 25 x 8-12
    • Rear Tires: 25 x 10-12
    Dimensions
    • Length: 82.9 inches
    • Width: 47.4 inches
    • Height: 47.8 inches
    • Wheelbase: 50.0 inches
    • Seat Height: 34.5 inches
    • Ground Clearance: 7.5 inches
    • Curb Weight: 648 pounds (includes all standard equipment, required fluids and a full tank of fuel)
    • Fuel Capacity: 3.9 gallons, including 1.3-gallon reserve
    • Turning Radius: 10.5 feet
    • Towing Capacity: 848 pounds
    • Front Rack Capacity: 88 pounds
    • Rear Rack Capacity: 176 pounds
    Other
    • Available Colors: Hero Red, Black Forest Green, TrueTimber® Atera Camo
    • Model ID: TRX520FM2
    • Emissions: Meets current EPA CARB (California) off-road emissions standards.
    • Important Safety Information: Recommended for riders 16 years of age and older. Honda recommends that all ATV riders take a training course and read their owner's manual thoroughly.
